Archetype

You wanted fan options?

Phaetus - Dragon UHF / SF / HF

Overview

Dragon SF/HF

If you're using the SF or HF Dragon, it requires a meltzone extender!

BOM

  • 1x Dragon UHF
  • 4x M2.5x8 SHCS

Step by Step

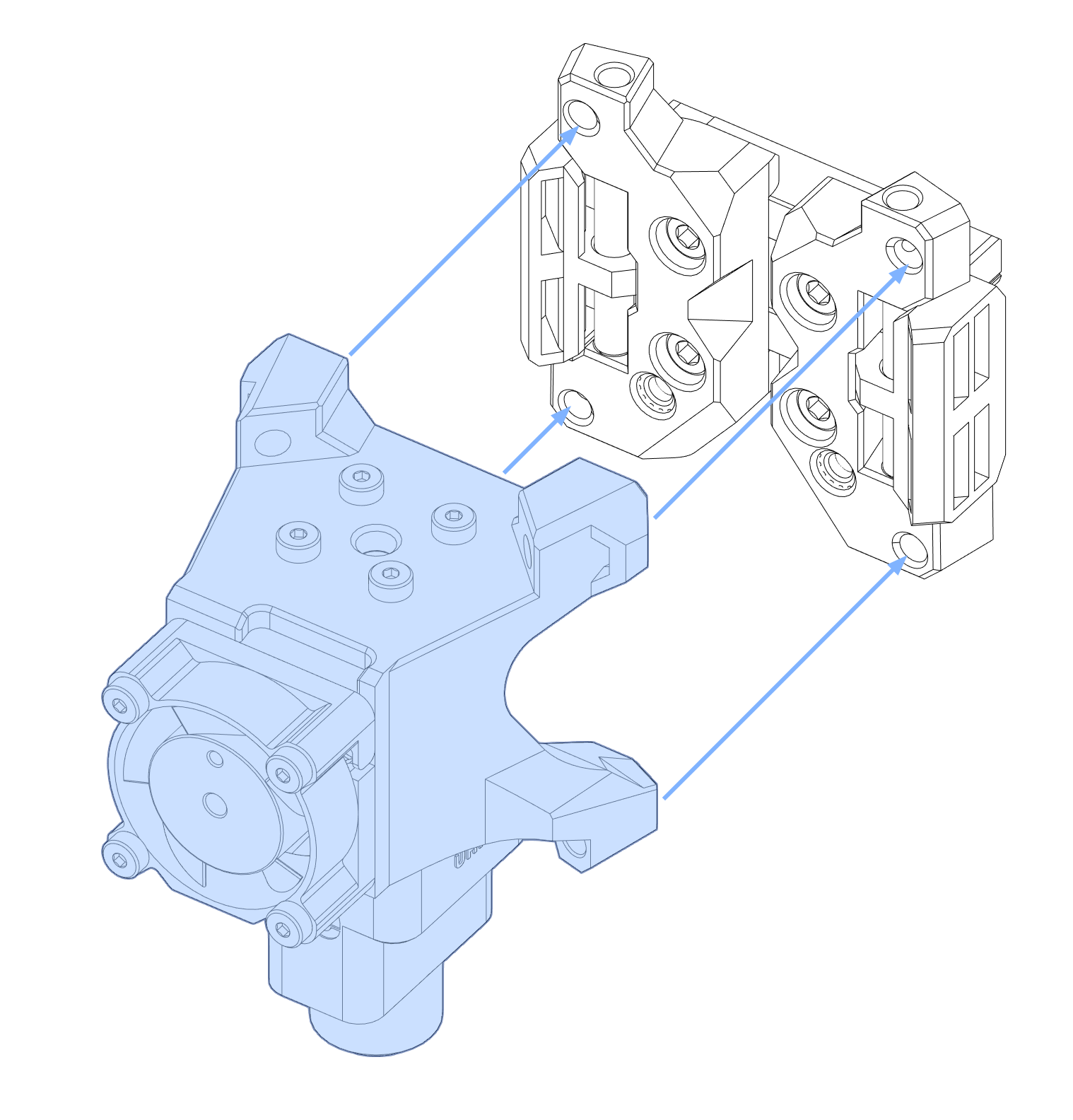

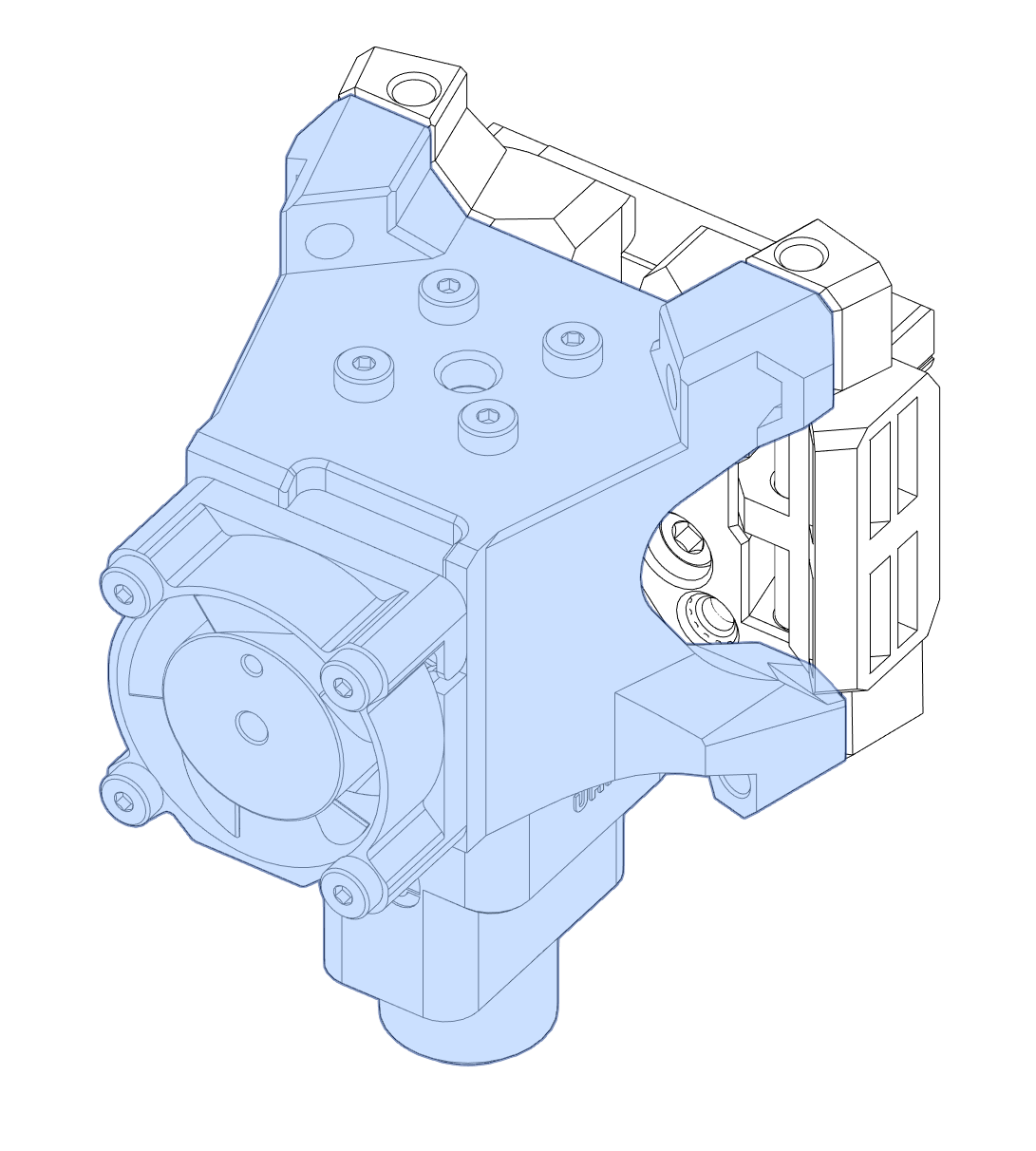

Slide the Dragon into the crevice.

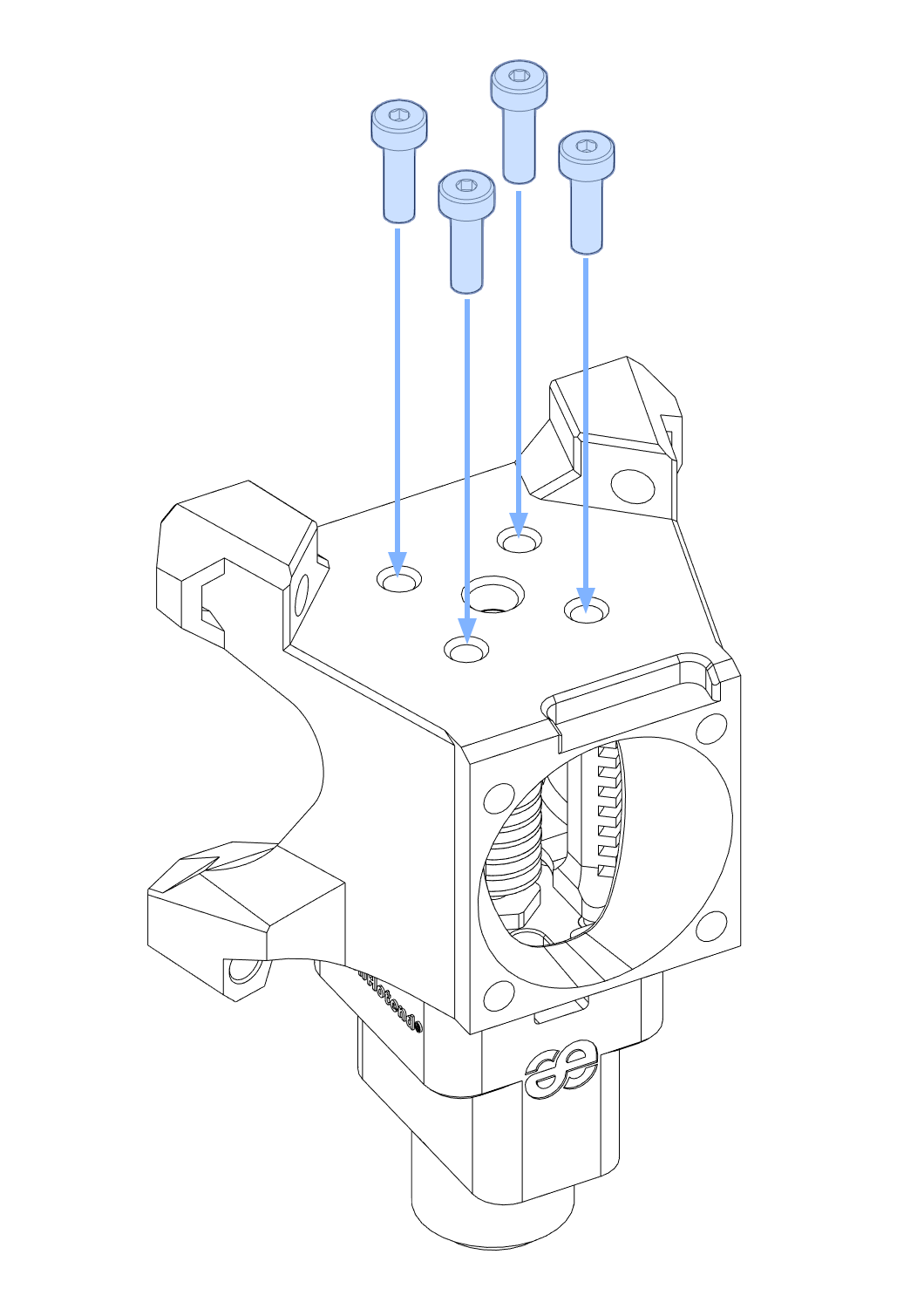

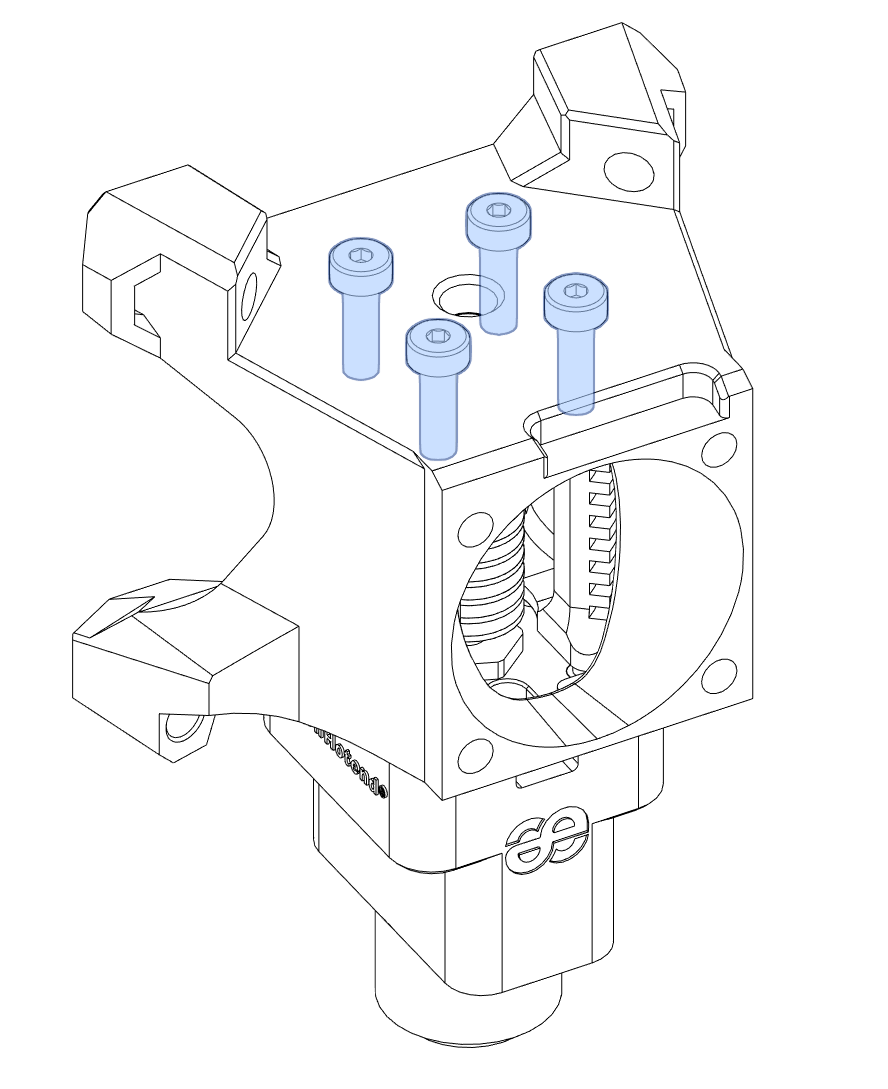

Insert m2.5x8mm FHCS.

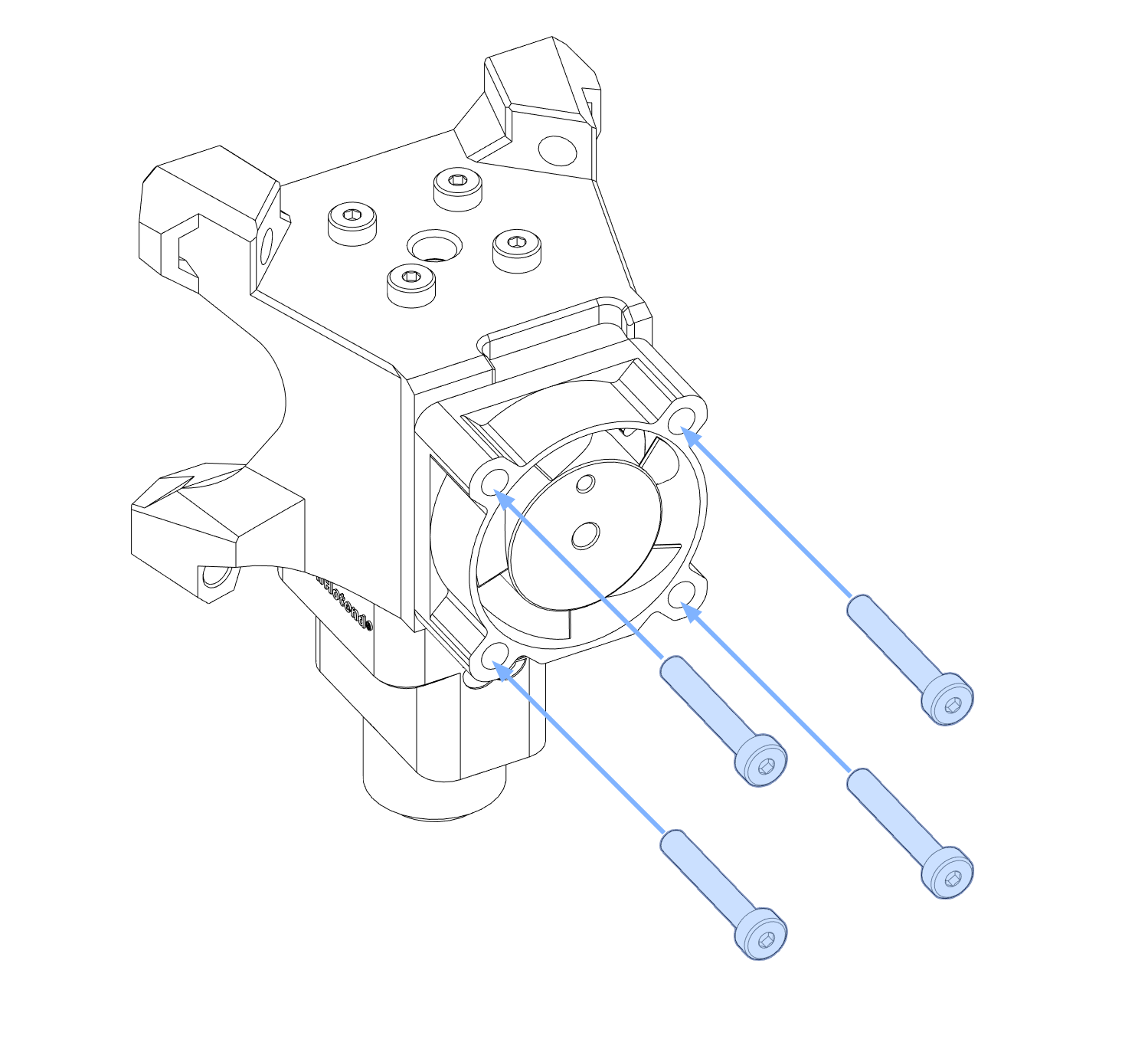

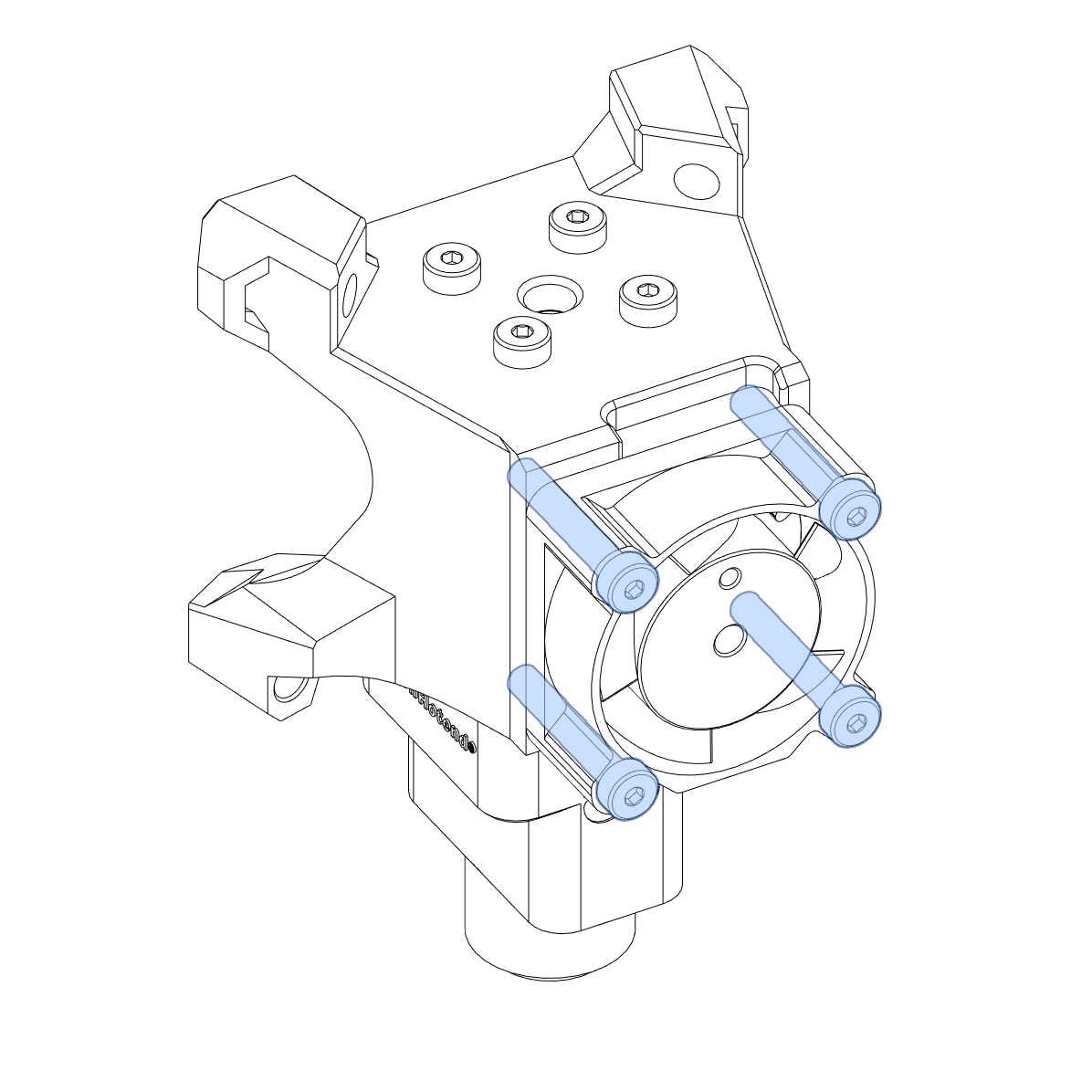

Secure with 4x m2.5x16 SHCS.
