Archetype

You wanted fan options?

Phaetus - Rapido

Overview

BOM

  • 1x Rapido
  • 4x M2.5x8 SHCS

Step by Step

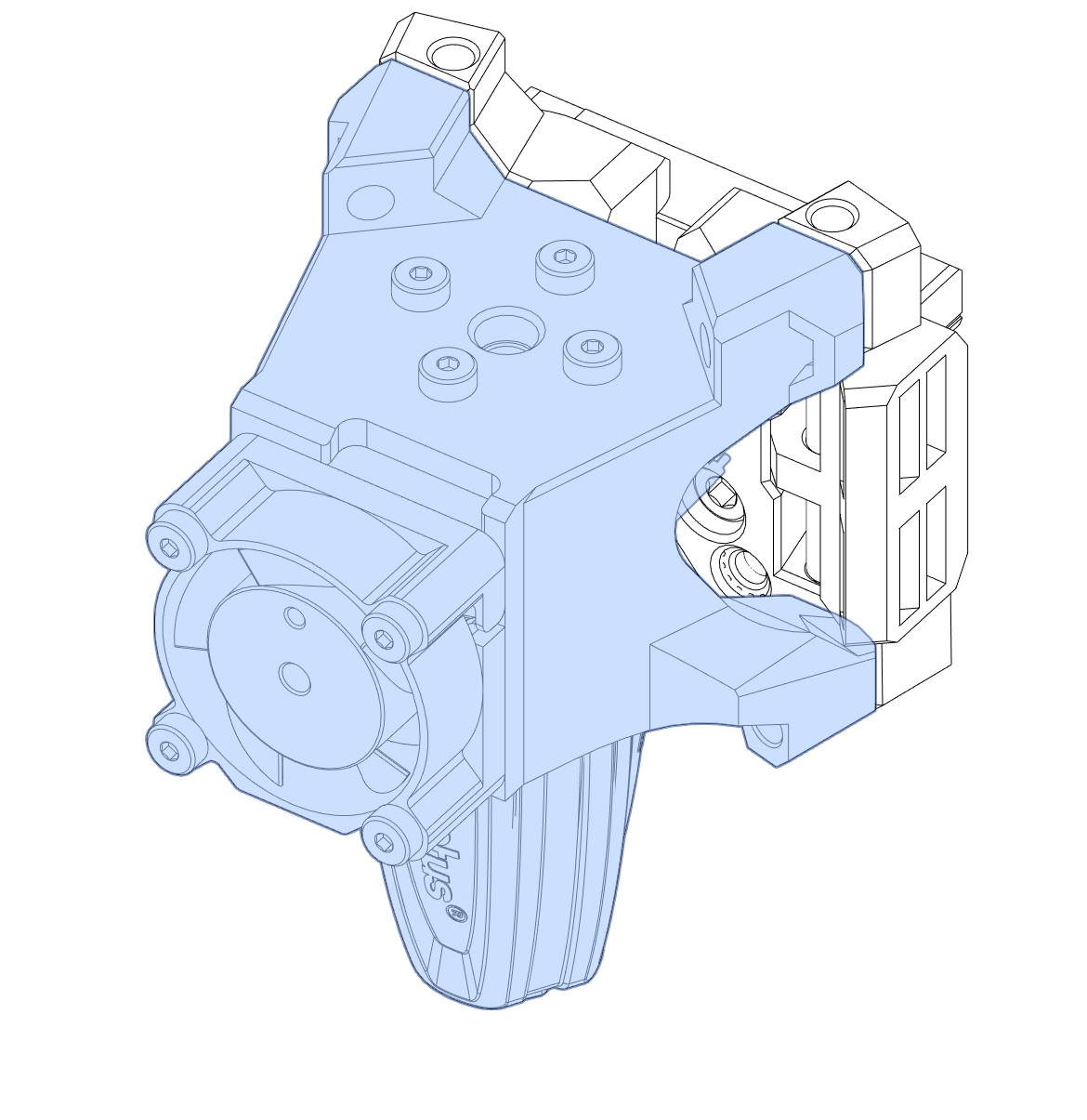

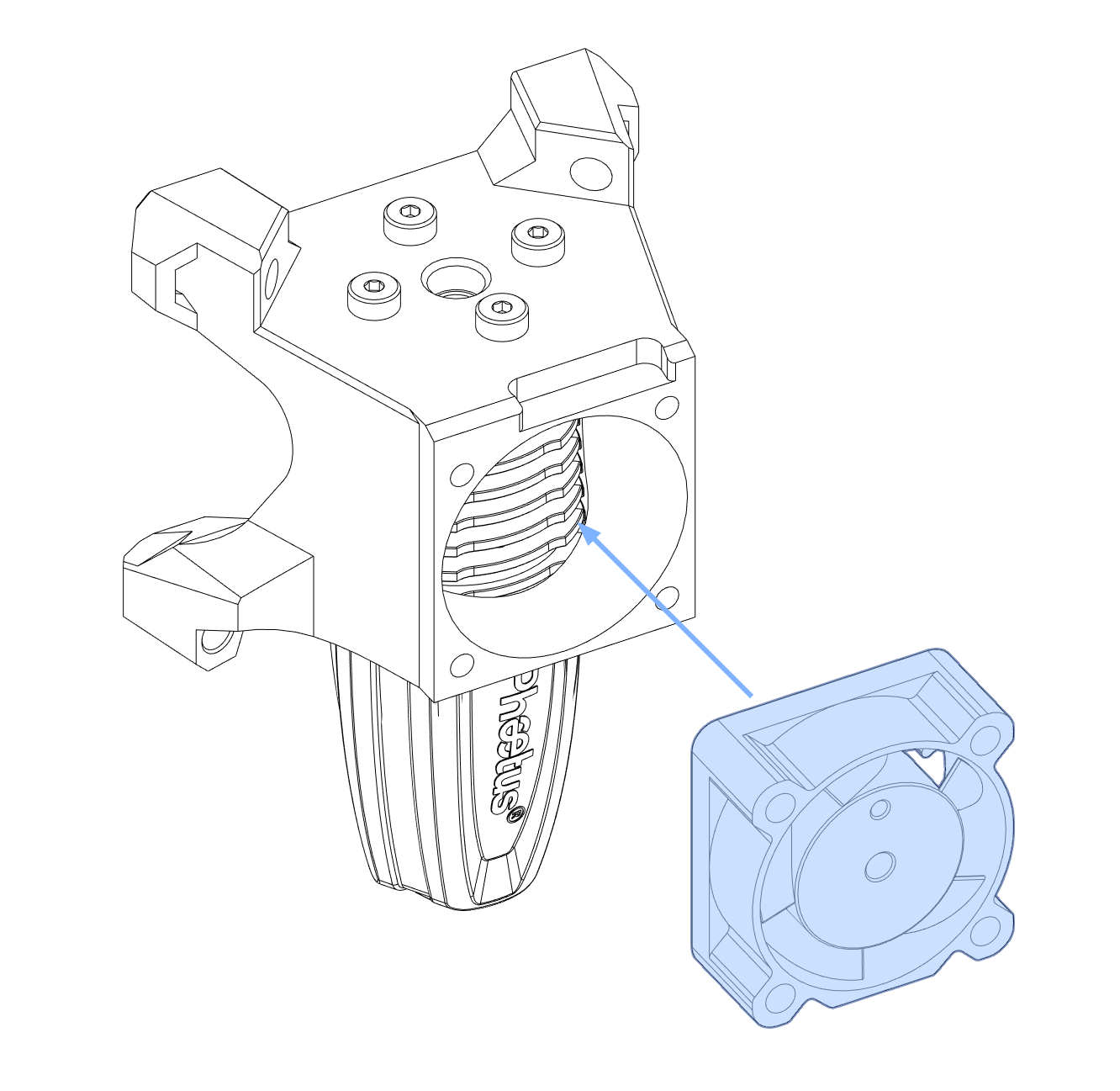

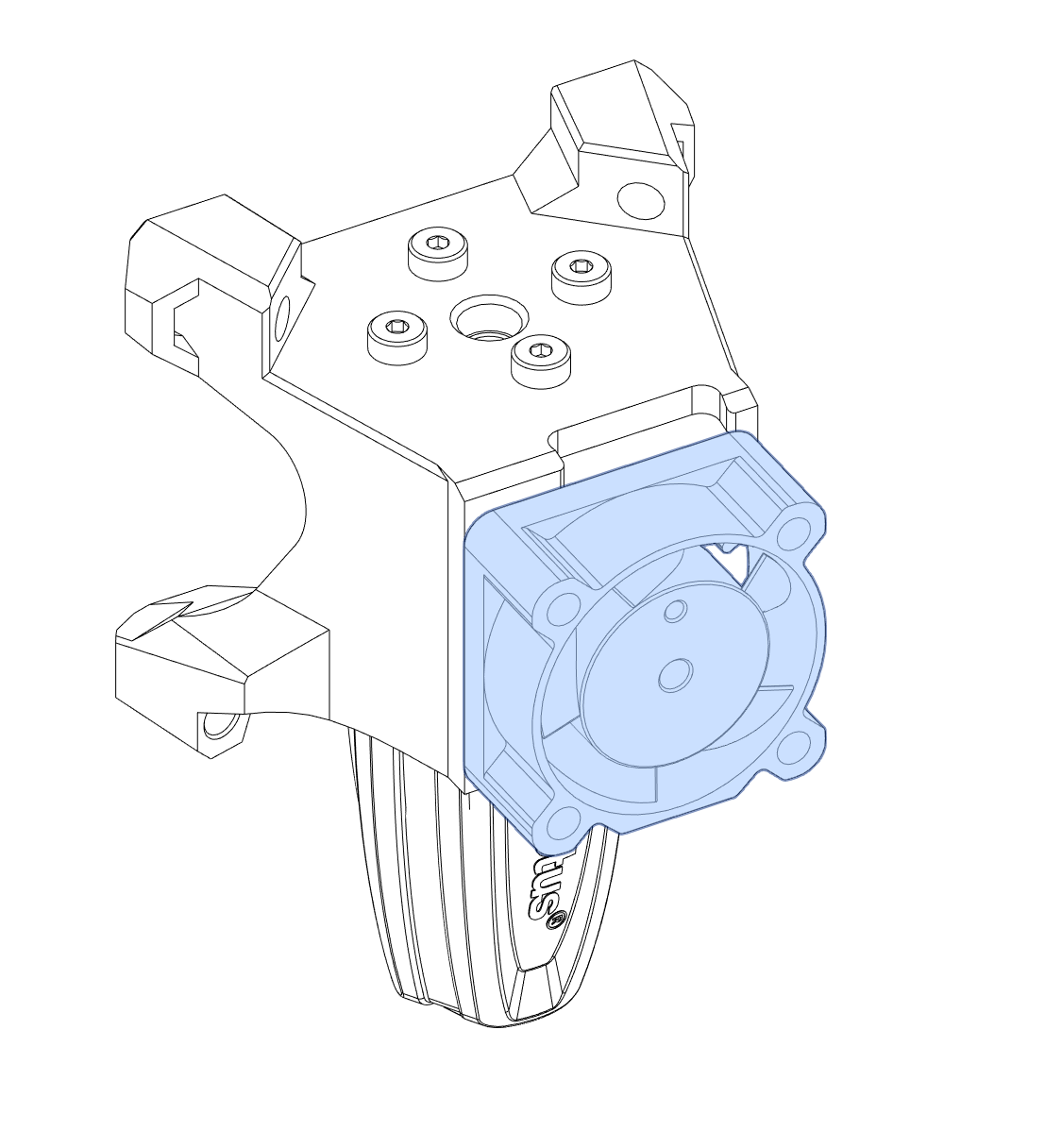

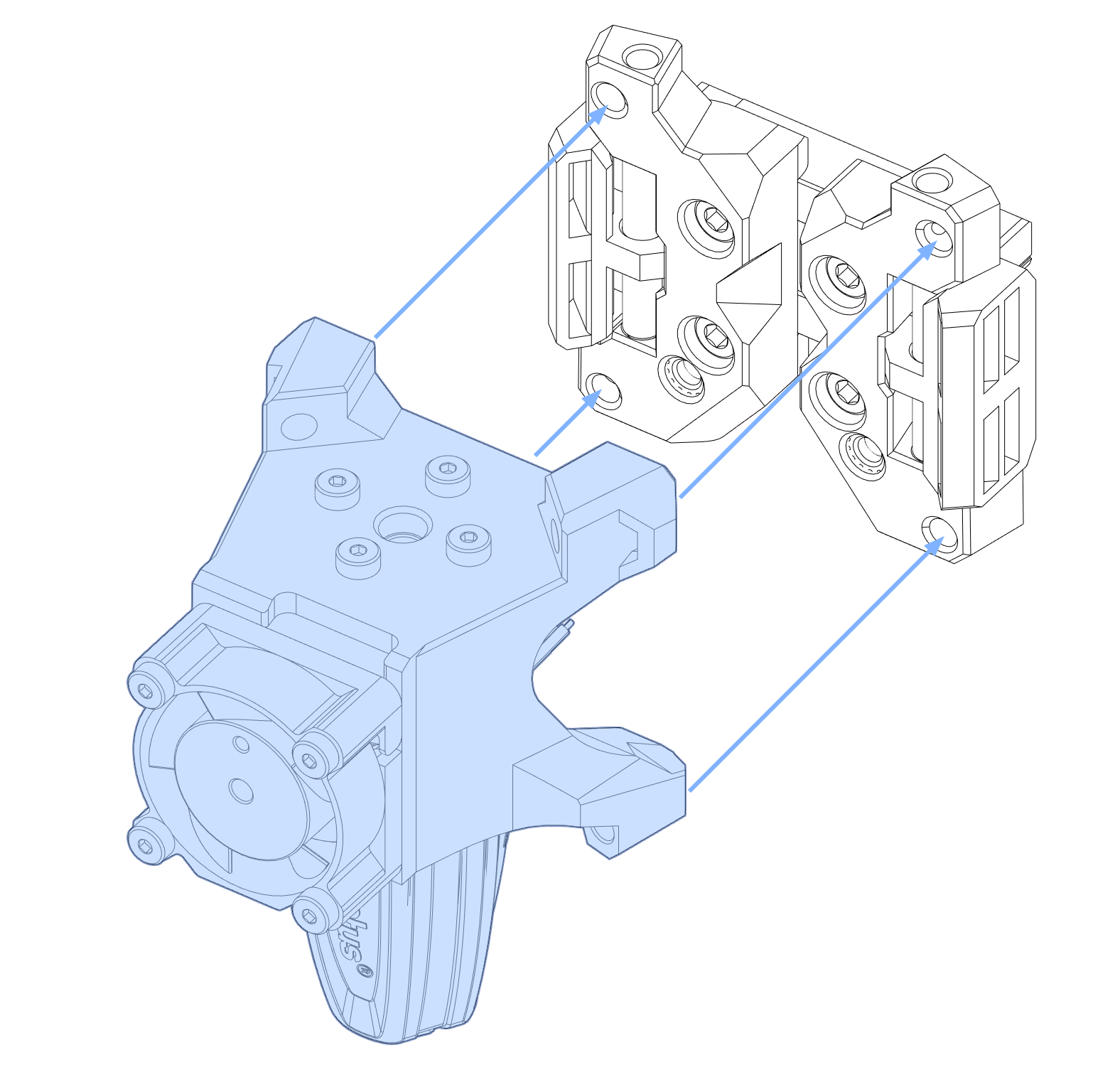

Slide the Rapido into the crevice.

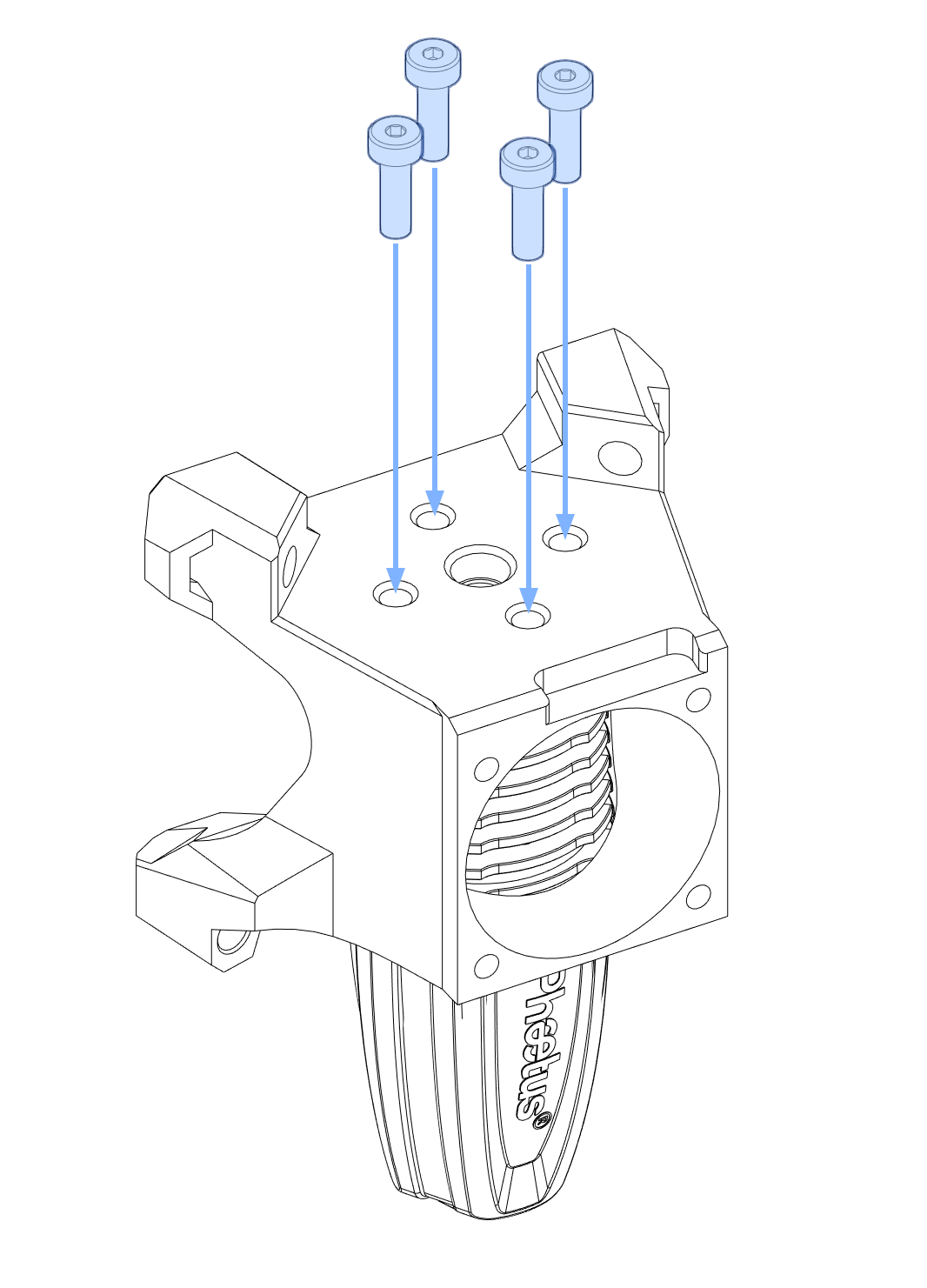

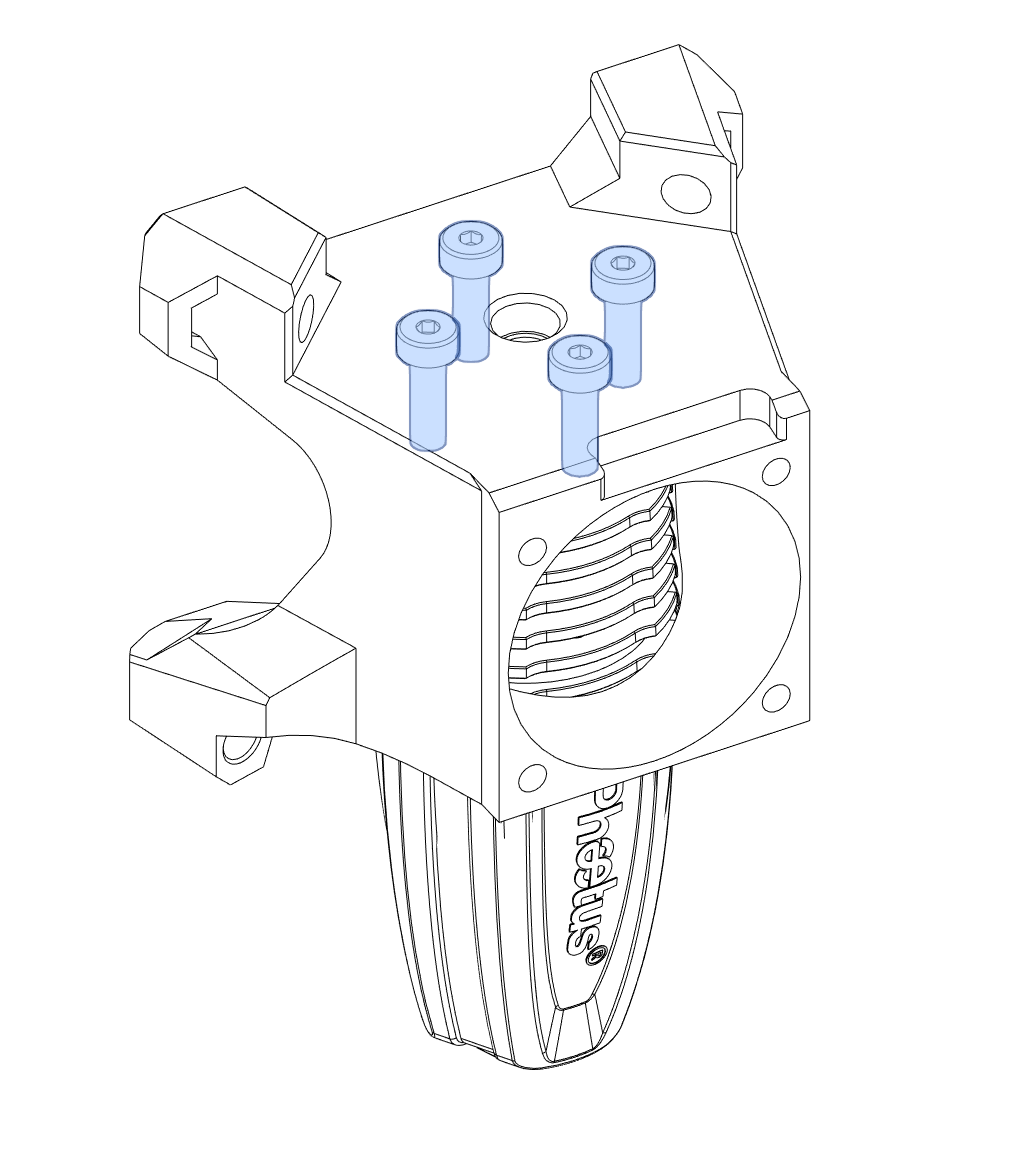

Insert m2.5x8mm FHCS.

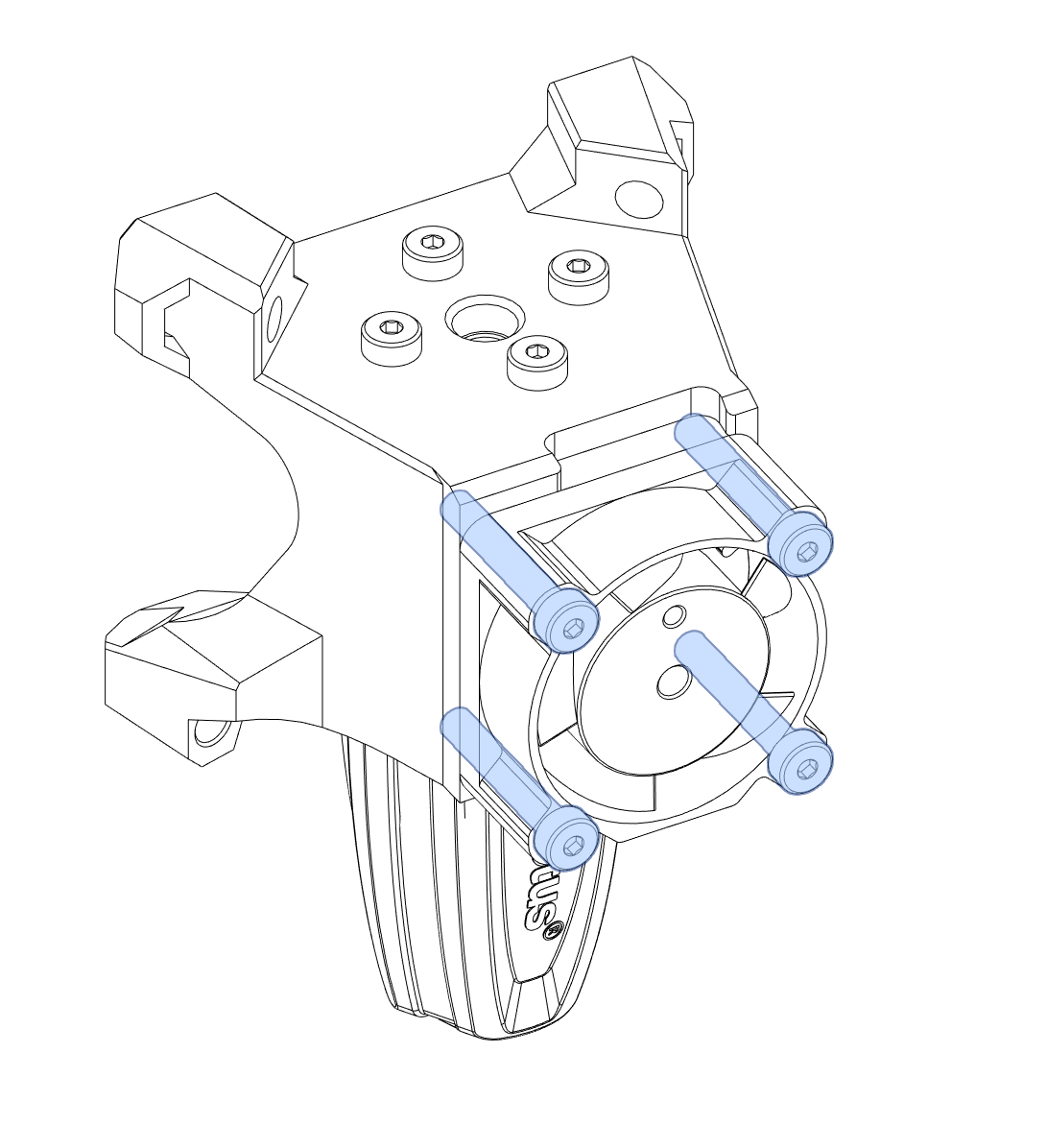

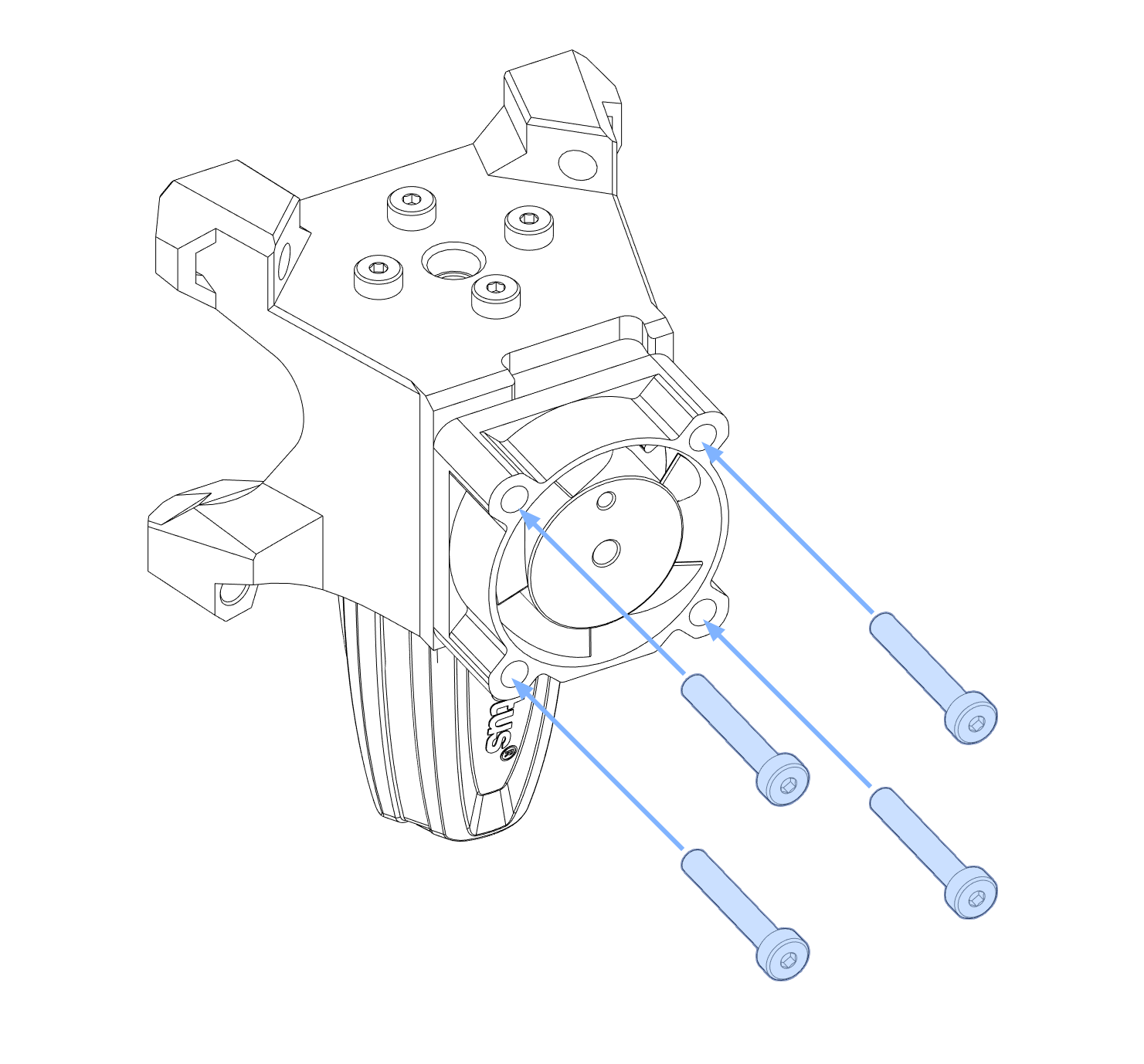

Secure with 4x m2.5x16 SHCS.
